Overview

Implementation of the Photoxic Lipid Model (PTLM) for the calculation of Canadian Water Quality Guidelines for Polycyclic Aromatic Hydrocarbons (PAH).

This package uses the Tropospheric Ultraviolet and Visible (TUV) Radiation Model (https://github.com/NCAR/TUV) to calculate the light penetration through water of a given depth at a given location, with a specified Dissolved Organic Carbon concentration. The light exposure is then used (along with the PAH-specific molar absorption across a range of wavelengths), to calculate the light absorption (Pabs) of the given PAH at that location. This is then used to determine the phototoxic benchmark.

Installation

Windows

On Windows, you need to install Rtools. Make sure that you install the appropriate version for your version of R (i.e. Rtools 4.0 for R 4.0.x, Rtools 4.3 for R 4.3.x, etc.). This will install a compiler toolchain on your computer (specifically gfortran) which is necessary to compile the Fortran code for the TUV model.

Mac

On a Mac, the easiest way to get started is to use Homebrew, and install gcc, which includes gfortran:

brew install gcc

Install pahwq

Once you have Rtools (Windows) or gcc (Mac), you can install the package with:

# install.packages("pak")
pak::pak("bcgov/pahwq")

Note: You may get some warnings when you install the package - these are from the Fortran compiler because the Fortran code is quite old and does not fully conform to modern standards. These warnings do not affect the package functionality or accuracy.

Example usage

To calculate the acute phototoxic water quality guideline (benchmark) for Anthracene at 0.25 m depth in Okanagan Lake on June 21, 2023, with a measured DOC of 5 g/m^3, you can use the following code:

  1. Load the pahwq package:
  1. Run the TUV model at your location to determine the incident light intensity across the wavelength spectrum, at each time stamp within the time window specified:
irrad <- tuv(
  depth_m = 0.25,
  lat = 49.601632,
  lon = -119.605862,
  DOC = 5,
  date = "2023-06-21",
  tzone = -8L
)
head(irrad)
#>    wl wavelength_start wavelength_end Kd_lambda t_00.00.00 t_01.00.00
#> 1 280            279.5          280.5      16.7          0          0
#> 2 281            280.5          281.5      16.4          0          0
#> 3 282            281.5          282.5      16.1          0          0
#> 4 283            282.5          283.5      15.9          0          0
#> 5 284            283.5          284.5      15.6          0          0
#> 6 285            284.5          285.5      15.3          0          0
#>   t_02.00.00 t_03.00.00 t_04.00.00 t_05.00.00 t_06.00.00 t_07.00.00 t_08.00.00
#> 1          0          0   1.93e-36   6.12e-36   1.16e-35   2.71e-35   5.35e-32
#> 2          0          0   1.83e-33   5.79e-33   1.10e-32   2.63e-32   3.85e-29
#> 3          0          0   1.99e-30   6.28e-30   1.21e-29   2.96e-29   3.15e-26
#> 4          0          0   9.12e-29   2.88e-28   5.56e-28   1.39e-27   1.23e-24
#> 5          0          0   1.02e-26   3.22e-26   6.28e-26   1.61e-25   1.10e-22
#> 6          0          0   7.62e-25   2.40e-24   4.74e-24   1.26e-23   6.50e-21
#>   t_09.00.00 t_10.00.00 t_11.00.00 t_12.00.00 t_13.00.00 t_14.00.00 t_15.00.00
#> 1   2.39e-27   1.32e-24   3.76e-23   1.08e-22   3.83e-23   1.37e-24   2.56e-27
#> 2   6.55e-25   2.07e-22   4.39e-21   1.15e-20   4.47e-21   2.14e-22   6.98e-25
#> 3   1.99e-22   3.56e-20   5.61e-19   1.34e-18   5.69e-19   3.68e-20   2.11e-22
#> 4   4.44e-21   5.71e-19   7.58e-18   1.72e-17   7.69e-18   5.89e-19   4.68e-21
#> 5   1.88e-19   1.57e-17   1.66e-16   3.49e-16   1.68e-16   1.61e-17   1.97e-19
#> 6   5.12e-18   2.72e-16   2.28e-15   4.46e-15   2.30e-15   2.79e-16   5.34e-18
#>   t_16.00.00 t_17.00.00 t_18.00.00 t_19.00.00 t_20.00.00 t_21.00.00 t_22.00.00
#> 1   6.01e-32   2.74e-35   1.16e-35   6.16e-36   1.96e-36          0          0
#> 2   4.28e-29   2.66e-32   1.11e-32   5.83e-33   1.86e-33          0          0
#> 3   3.45e-26   2.99e-29   1.21e-29   6.32e-30   2.02e-30          0          0
#> 4   1.34e-24   1.41e-27   5.60e-28   2.90e-28   9.29e-29          0          0
#> 5   1.19e-22   1.63e-25   6.31e-26   3.24e-26   1.04e-26          0          0
#> 6   6.98e-21   1.28e-23   4.77e-24   2.42e-24   7.76e-25          0          0
#>   t_23.00.00
#> 1          0
#> 2          0
#> 3          0
#> 4          0
#> 5          0
#> 6          0
  1. Calculate the value of Pabs for the PAH of interest, using the results of the TUV model run:
(Pabs <- p_abs(irrad, "Anthracene"))
#> [1] 1142.155
  1. Finally, calculate phototoxic benchmark in 𝝁g/L, supplying the $`P_{abs}`$ value.
phototoxic_benchmark(Pabs, pah = "Anthracene")
#> [1] 2.145783

We can compare the phototoxic benchmark to the narcotic benchmark to see the effect of the photoxicity of the PAH:

narcotic_benchmark("Anthracene")
#> [1] 64.12872

Options

pahwq creates a directory on your computer to store the TUV model input and output files. By default, the location of this is set automatically to a standard location (determined by tools::R_user_dir). You can change the location of this directory by setting the pahwq.tuv_data_dir option:

options("pahwq.tuv_data_dir" = "path/to/my/tuv/data")

Running the TUV model step-by-step

Step 2 above can be broken down if you desire to inspect each phase of running the TUV model:

  1. Set the options for the TUV model run:
set_tuv_aq_params(
  depth_m = 0.25,
  lat = 49.601632,
  lon = -119.605862,
  DOC = 5,
  date = "2023-06-21",
  tzone = -8L
)
  1. Run the TUV model
  1. Get the results of the TUV model run, as a data.frame of incident irradiation at each timestamp and wavelength, at the given water depth at your location:
irrad <- get_tuv_results(file = "out_irrad_y")
head(irrad)
#>    wl wavelength_start wavelength_end Kd_lambda t_00.00.00 t_01.00.00
#> 1 280            279.5          280.5      16.7          0          0
#> 2 281            280.5          281.5      16.4          0          0
#> 3 282            281.5          282.5      16.1          0          0
#> 4 283            282.5          283.5      15.9          0          0
#> 5 284            283.5          284.5      15.6          0          0
#> 6 285            284.5          285.5      15.3          0          0
#>   t_02.00.00 t_03.00.00 t_04.00.00 t_05.00.00 t_06.00.00 t_07.00.00 t_08.00.00
#> 1          0          0   1.93e-36   6.12e-36   1.16e-35   2.71e-35   5.35e-32
#> 2          0          0   1.83e-33   5.79e-33   1.10e-32   2.63e-32   3.85e-29
#> 3          0          0   1.99e-30   6.28e-30   1.21e-29   2.96e-29   3.15e-26
#> 4          0          0   9.12e-29   2.88e-28   5.56e-28   1.39e-27   1.23e-24
#> 5          0          0   1.02e-26   3.22e-26   6.28e-26   1.61e-25   1.10e-22
#> 6          0          0   7.62e-25   2.40e-24   4.74e-24   1.26e-23   6.50e-21
#>   t_09.00.00 t_10.00.00 t_11.00.00 t_12.00.00 t_13.00.00 t_14.00.00 t_15.00.00
#> 1   2.39e-27   1.32e-24   3.76e-23   1.08e-22   3.83e-23   1.37e-24   2.56e-27
#> 2   6.55e-25   2.07e-22   4.39e-21   1.15e-20   4.47e-21   2.14e-22   6.98e-25
#> 3   1.99e-22   3.56e-20   5.61e-19   1.34e-18   5.69e-19   3.68e-20   2.11e-22
#> 4   4.44e-21   5.71e-19   7.58e-18   1.72e-17   7.69e-18   5.89e-19   4.68e-21
#> 5   1.88e-19   1.57e-17   1.66e-16   3.49e-16   1.68e-16   1.61e-17   1.97e-19
#> 6   5.12e-18   2.72e-16   2.28e-15   4.46e-15   2.30e-15   2.79e-16   5.34e-18
#>   t_16.00.00 t_17.00.00 t_18.00.00 t_19.00.00 t_20.00.00 t_21.00.00 t_22.00.00
#> 1   6.01e-32   2.74e-35   1.16e-35   6.16e-36   1.96e-36          0          0
#> 2   4.28e-29   2.66e-32   1.11e-32   5.83e-33   1.86e-33          0          0
#> 3   3.45e-26   2.99e-29   1.21e-29   6.32e-30   2.02e-30          0          0
#> 4   1.34e-24   1.41e-27   5.60e-28   2.90e-28   9.29e-29          0          0
#> 5   1.19e-22   1.63e-25   6.31e-26   3.24e-26   1.04e-26          0          0
#> 6   6.98e-21   1.28e-23   4.77e-24   2.42e-24   7.76e-25          0          0
#>   t_23.00.00
#> 1          0
#> 2          0
#> 3          0
#> 4          0
#> 5          0
#> 6          0

Calculating photoxicity for multiple chemicals

If you want to calculate a phototoxic benchmark for several chemicals at a particular site, you can use the pb_multi() function.

First, you must calculate the absorption with tuv():

irrad <- tuv(
  depth_m = 0.25,
  lat = 49.601632,
  lon = -119.605862,
  DOC = 5,
  date = "2023-06-21",
  tzone = -8L,
  quiet = TRUE
)

Then, use the results from the TUV model run and a vector of chemical names:

pb_multi(irrad, pahs = c("Anthracene", "Benzo(a)pyrene", "Fluorene"))
#>              pah narcotic_benchmark         pabs phototoxic_benchmark
#> 1     anthracene           64.12872 1142.1551876           2.14578269
#> 2 benzo(a)pyrene            2.16423 5178.7338525           0.03571113
#> 3       fluorene          120.50776    0.3085064          77.08704397

Sensitivity to Kd, depth, and time of year

Use the function sens_kd_depth() to investigate the sensitivity of a given PAH at a location to light attenuation (DOC or Kd) and depth over a set of dates.

There is also a plotting function, plot_sens_kd_depth() to make a static or interactive heat map of the analysis.

# varying DOC
out <- sens_kd_depth(
  "Anthracene",
  lat = 52,
  lon = -113,
  DOC = 3:5,
  depth_m = c(0.25, 0.5),
  date = c("2023-07-01", "2023-08-01")
)
head(out)
#> # A tibble: 6 × 11
#>     lat   lon elev_m depth_m date         DOC tuv_res               pah
#>   <dbl> <dbl>  <dbl>   <dbl> <date>     <int> <list>                <chr>
#> 1    52  -113    880    0.25 2023-07-01     3 <tv_rslts [421 × 28]> anthracene
#> 2    52  -113    880    0.5  2023-07-01     3 <tv_rslts [421 × 28]> anthracene
#> 3    52  -113    880    0.25 2023-08-01     3 <tv_rslts [421 × 28]> anthracene
#> 4    52  -113    880    0.5  2023-08-01     3 <tv_rslts [421 × 28]> anthracene
#> 5    52  -113    880    0.25 2023-07-01     4 <tv_rslts [421 × 28]> anthracene
#> 6    52  -113    880    0.5  2023-07-01     4 <tv_rslts [421 × 28]> anthracene
#> # ℹ 3 more variables: narcotic_benchmark <dbl>, pabs <dbl>,
#> #   phototoxic_benchmark <dbl>

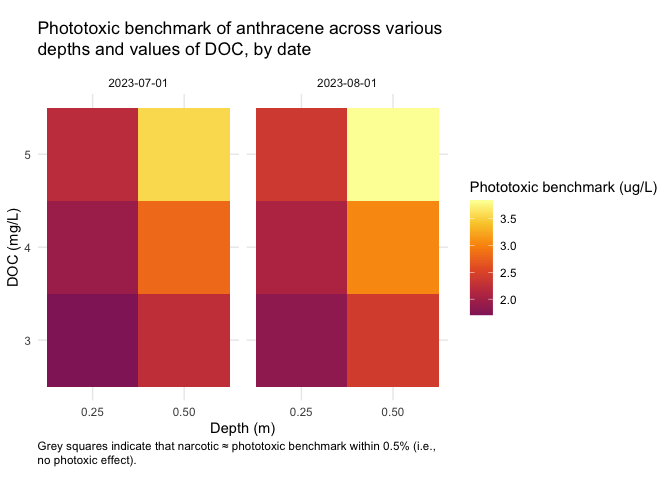

plot_sens_kd_depth(out, interactive = FALSE)

# Varying Kd_ref
out2 <- sens_kd_depth(
  "benzo(a)pyrene",
  lat = 57,
  lon = -120,
  Kd_ref = seq(10, 50, by = 10),
  depth_m = c(0.25, 0.5, 0.75, 1),
  date = c("2023-05-01", "2023-07-01", "2023-09-01")
)

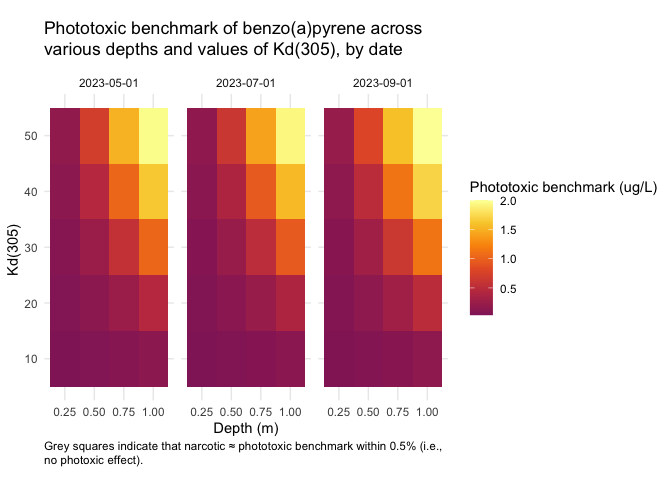

plot_sens_kd_depth(out2, interactive = FALSE)

Calculating Pabs and phototoxic benchmarks with experimental data

If you have experimentally obtained data with a measured irradiance across a range of wavelengths, you can calculate Pabs using p_abs_single() on a 2-column data.frame. The first column must contain wavelengths and be called wl, and the second column contains irradiance values. Irradiance values must be in units of "uW / cm^2 / nm" (default) or "W / m^2 / nm".

irrad_df <- read.csv("my-irrad-data.csv")

head(irrad_df)
#>    wl          i
#> 1 280 0.05500000
#> 2 281 0.05000000
#> 3 282 0.04666667
#> 4 283 0.04000000
#> 5 284 0.06000000
#> 6 285 0.05500000

p_abs_single(irrad_df, pah = "anthracene")
#> [1] 0.027156

To simulate this exposure for a period of time (say 16 hours of daylight over a two-day period), use the time_multiplier argument to get the Pabs for the full exposure time. E.g., if the exposure was one second, and you need a 16h exposure, the multiplier would be 3600 s in 1h * 16 h (= 57600).

p_abs_single(irrad_df, pah = "anthracene", time_multiplier = 3600 * 16)
#> [1] 1564.17

You can then use this value to calculate phototoxic benchmark with the phototoxic_benchmark() function. You can either supply a narcotic benchmark value directly, or allow the function to calculate the narcotic benchmark for the chemical supplied:

# Calculate the Pabs for the simulated exposure:
p_abs_exp <- p_abs_single(irrad_df, pah = "anthracene", time_multiplier = 3600 * 16)

# Calculate the phototoxic benchmark:
phototoxic_benchmark(p_abs_exp, narc_bench = 58.4)
#> [1] 1.272051

Sensitivity analysis

An analysis was conducted to test the sensitivity to various parameters in the TUV model. The analysis can be viewed at: https://bcgov.github.io/pahwq/articles/sensitivity.html.
