Columns
| Column | Type | Size | Nulls | Auto | Default | Children | Parents | Comments | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| rmf_skey | int4 | 10 | null |
|
|
The SKEY for the RECREATION MAP FEATURE. |
|||||
| map_feature_id | int4 | 10 | √ | null |
|
|
A unique identifier to a version of a map object. This is very similar to the feature ID in INCOSADA except it was universally unique. If a new version of a cut block came in it would be assigned a new identifier. |
||||
| geometry_type_code | varchar | 3 | √ | null |
|
|
Identifies linear or polygonal geometry types for a tenure application feature. |
||||
| geometry | geometry | 2147483647 | √ | null |
|
|
The geometry for this feature. |
||||
| feature_area | numeric | 11,4 | √ | null |
|
|
Spatial feature area in hectares. This value is calculated. |
||||
| feature_length | numeric | 11,4 | √ | null |
|
|
Spatial feature length in kilometres. This value is calculated. |
||||
| feature_perimeter | numeric | 11,4 | √ | null |
|
|
Spatial feature perimeter in kilometres. This value is calculated. |
||||
| revision_count | int4 | 10 | √ | null |
|
|
A count of the number of times an entry in the entity has been modified. Used to validate if the current information displayed on a user’s web browser is the most current. |
||||
| updated_at | timestamp | 29,6 | √ | now() |
|
|
The timestamp of the last update to the road section record. |
||||
| updated_by | text | 2147483647 | √ | null |
|
|
The userid of the individual who last updated this road section record. |
||||
| created_at | timestamp | 29,6 | √ | now() |
|
|
Contains the system timestamp when data in a table was inserted. |
||||
| created_by | text | 2147483647 | √ | null |
|
|
The userid responsible for inserting data into a table. |
||||
| sys_period | tstzrange | 2147483647 | tstzrange(CURRENT_TIMESTAMP, NULL::timestamp with time zone) |
|
|
Indexes
| Constraint Name | Type | Sort | Column(s) |
|---|---|---|---|
| recreation_map_feature_geom_pkey | Primary key | Asc | rmf_skey |
| idx_recreation_map_feature_geom_map_feature_id | Performance | Asc | map_feature_id |
| recreation_map_feature_geom_map_feature_id_key | Must be unique | Asc | map_feature_id |

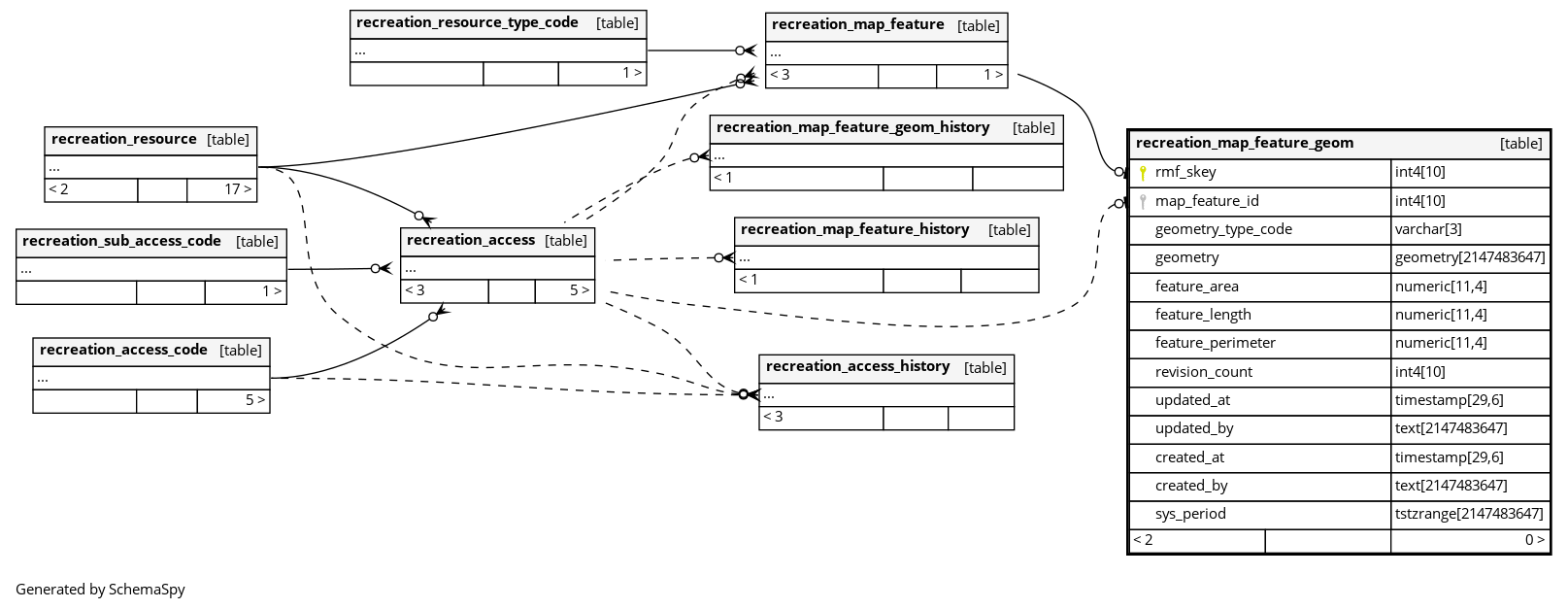

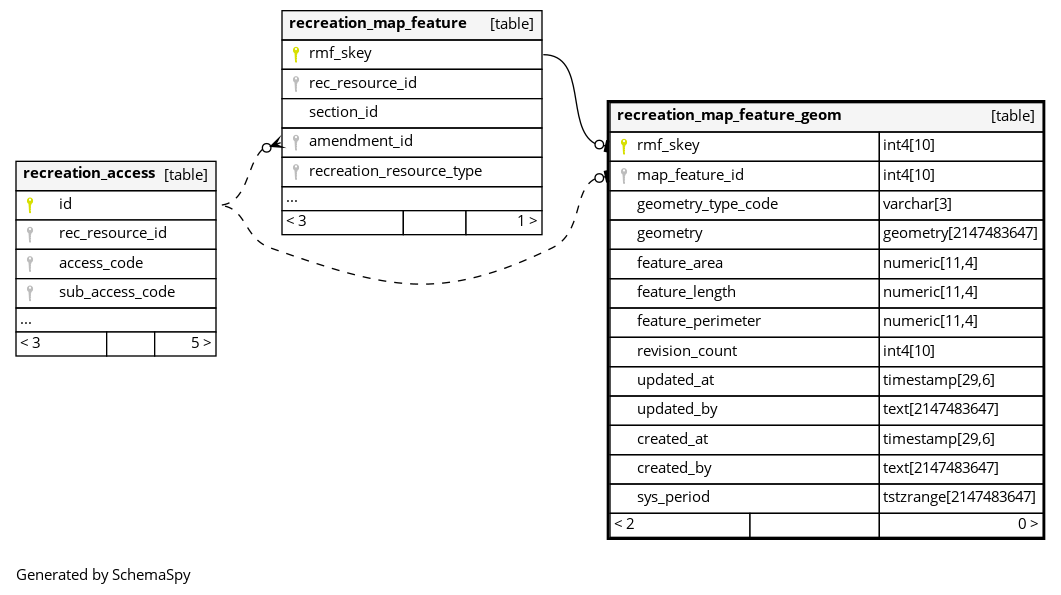

Relationships
Close relationships within degrees of separation
