recreation_asset

-1 rows


Description

Individualised asset entities with parent-child relationships (e.g., Campsite → Table). Geometry stored in recreation_asset_geom.

Columns

Column Type Size Nulls Auto Default Children Parents Comments
asset_id int8 19 √ null
recreation_asset.parent_id fk_asset_parent R
recreation_asset_geom.asset_id fk_asset_geom_asset C
recreation_asset_repair.asset_id fk_repair_asset C

Unique surrogate identifier for the individual asset.
parent_id int8 19 √ null
recreation_asset.asset_id fk_asset_parent R

ID of the parent container asset (e.g., Campsite, Day Use Area, Zone). NULL if top-level.
asset_tag varchar 50 √ null

Physical barcode, field tag, or campsite designation (e.g., CS-012, TBL-012-A).
rec_resource_id varchar 20 null
recreation_resource.rec_resource_id fk_asset_rec_resource R

FK to the parent Recreation Resource / Site (rst.recreation_resource).
asset_code int4 10 null
recreation_asset_code.asset_code fk_asset_asset_code R

Asset classification type (FK to rst.recreation_asset_code.asset_code).
asset_name varchar 200 √ null

Optional display name for the asset. UI defaults to asset_code description when null.
asset_comment text 2147483647 √ null

Free-text note or migrated structure_name value for this asset.
legacy_structure_id varchar 20 √ null

Informational string reference to the legacy aggregate recreation_structure record.
asset_length numeric 7,1 √ null

Total length in metres (paths, boardwalks, fences, bridges).
asset_width numeric 7,1 √ null

Total width in metres (parking areas, shelters, docks).
asset_area numeric 7,1 √ null

Total area in square metres.
default_value numeric 7,2 √ null

Default value for the asset, derived from the structure type value/dimension.
actual_value numeric 7,2 √ null

Actual value of the asset; takes precedence over the default value when set.
installation_date date 13 √ null

Date the asset was installed in the field.
updated_at timestamp 29,6 √ now()
updated_by text 2147483647 √ null
created_at timestamp 29,6 √ now()
created_by text 2147483647 √ null
sys_period tstzrange 2147483647 tstzrange(CURRENT_TIMESTAMP, NULL::timestamp with time zone)

Indexes

Constraint Name Type Sort Column(s)
recreation_asset_pkey Primary key Asc asset_id
idx_recreation_asset_code Performance Asc asset_code
idx_recreation_asset_parent_id Performance Asc parent_id
idx_recreation_asset_site Performance Asc rec_resource_id

Check Constraints

Constraint Name Constraint
chk_no_self_parent (parent_id <> asset_id)

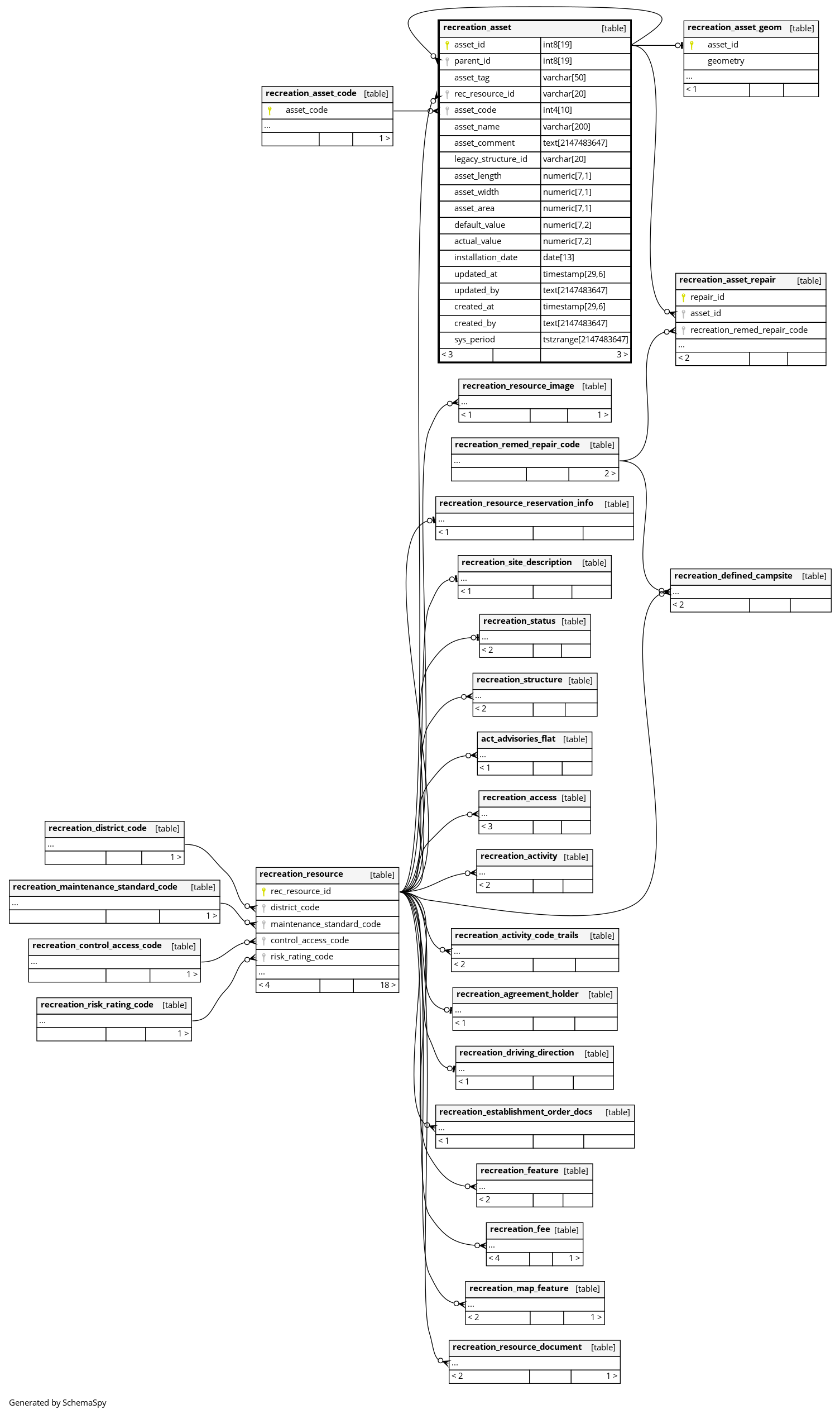

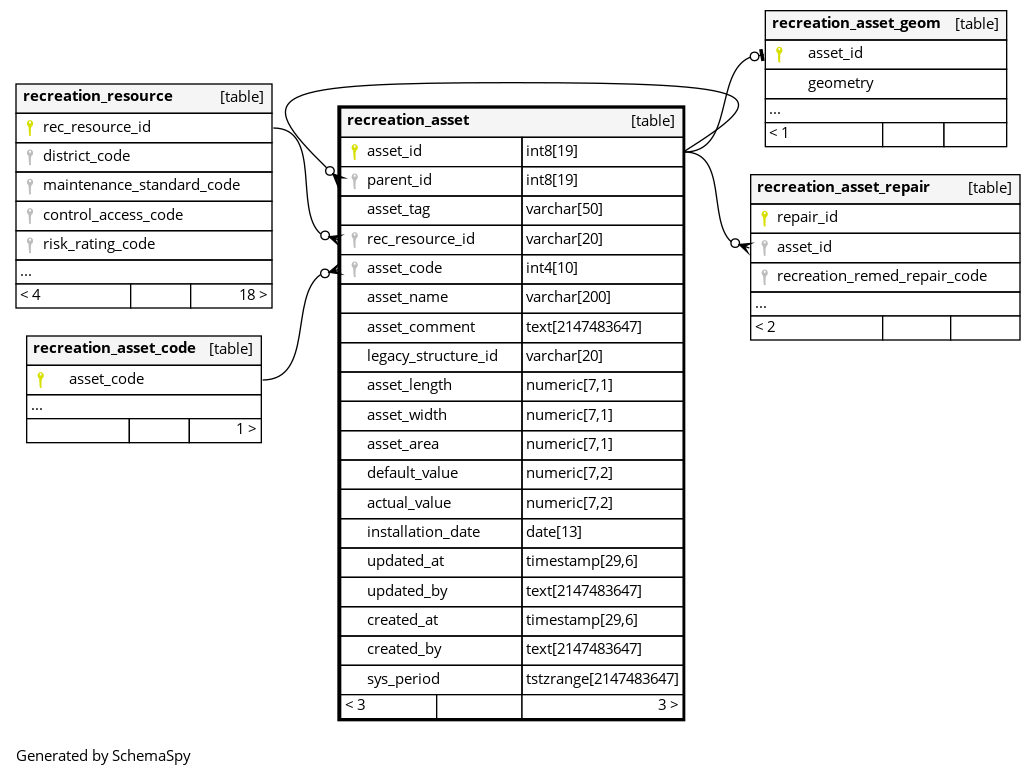

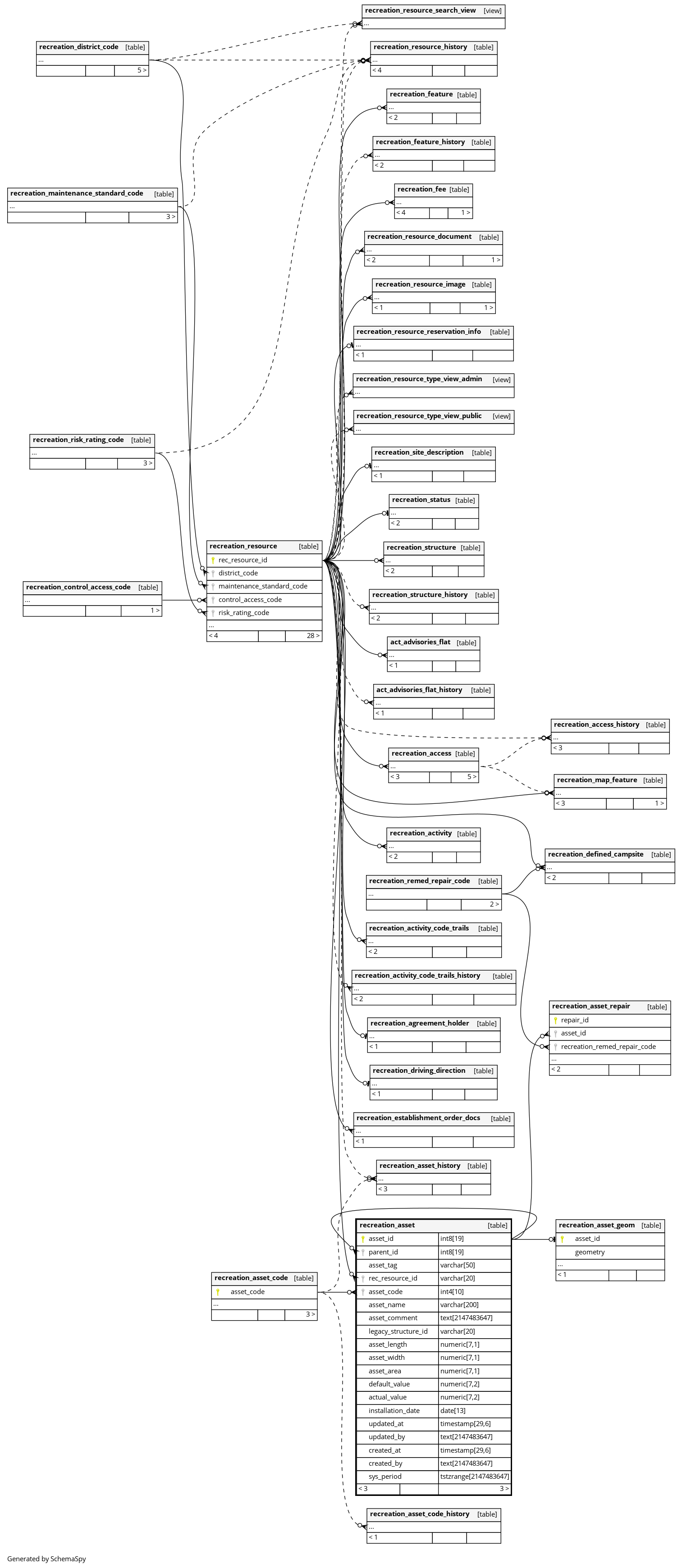

Relationships

Close relationships within degrees of separation
